NEW SIMPLECOM CM423V2 HDMI AUDIO EXTRACTOR 4K HDMI TO HDMI AND OPTICAL SPDIFplus3.5MM STEREO.e

Brand New Australia stock SIMPLECOM CM423V2 HDMI AUDIO EXTRACTOR 4K HDMI TO HDMI AND OPTICAL SPDIF + 3.5MM STEREO - Manuf PN: CM423V2

Additional Information

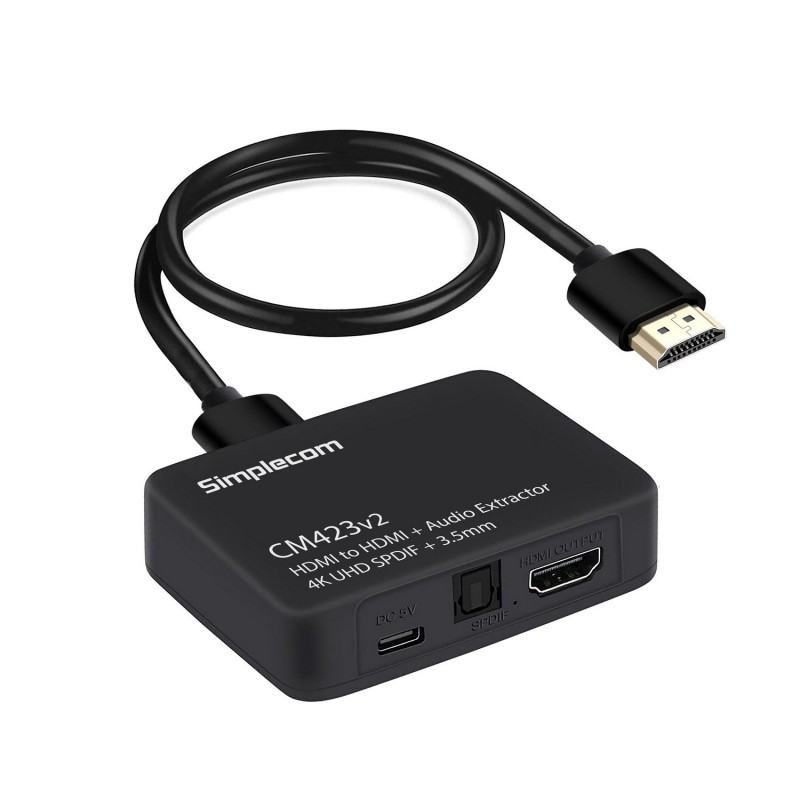

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo
• Features
• Optical SPDIF and 3.5mm audio output extracted from HDMI input
• One HDMI output for HDMI pass-through
• Ideal solution for connecting external speaker system with analog or optical input
• SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
• HDMI 1.4b and HDCP 1.4 Compliant
• Supports HDMI resolution up to 4K Ultra HD
• Powered by USB, plug and play
• Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM
• Specifications
• HDMI Version: HDMI 1.4b
• HDCP Version: HDCP 1.4
• EDID Support: EDID 1.4
• Input: 1x HDMI Female
• Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)
• Video Output: 1x HDMI Female (HDMI pass-through)
• HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
• Audio Format Support: DTS-HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD
• Max Bandwidth: 400 MHz
• Max Baud Rate: 10.2 Gbps
• Input/Output TMDS signal: 0.5~1.5Volts p-p (TTL)
• Input/Output DDC signal: 5Volts p-p (TTL)
• Max working current: 350mA
• Operation Temperature: -10 C ~ 50 C
• Dimension: 75 x 55 x 25mm (LxWxH)
• Weight: 43g
•
• Package Contents
• 1x HDMI Audio Extractor
• 1x 0.5M HDMI Cable
• 1x USB Power cable
• 1x USB Wall Charger
• 1x User Manual
