NEW SER5416H (LS) SUNIX 16-PORT RS-232 HIGH SPEED PCI EXPRESS SERIAL BOARD 921.6KBPS SUPPORT MICROSOFT WINDOWS LINUX AND DOS (

Brand New Australia stock (LS) SUNIX 16-PORT RS-232 HIGH SPEED PCI EXPRESS SERIAL BOARD, 921.6KBPS, SUPPORT MICROSOFT WINDOWS, LINUX, AND DOS (LS) - Manuf PN: SER5416H

Additional Information

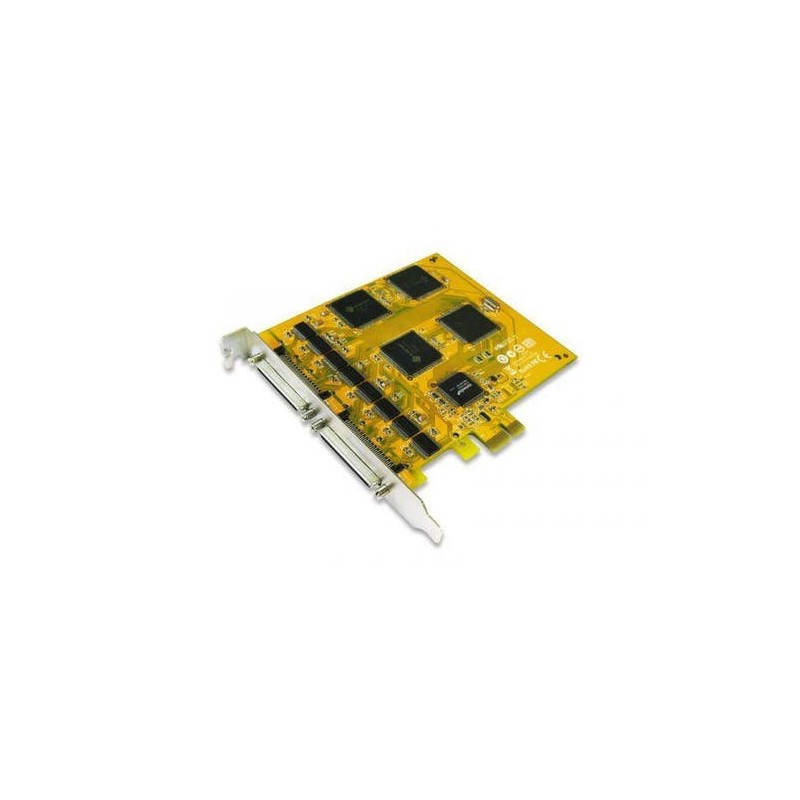

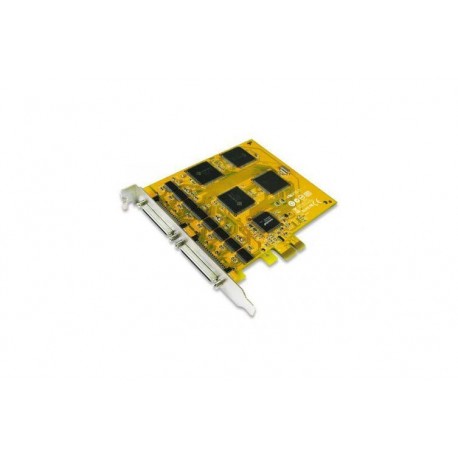

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS
• Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
• High speed SUN1999 16C950 compatible UART controller on-board.
• Designed to meet PCI Express Base Specification Revision 1.1.
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
• Plug-n-Play, I/O address and IRQ assigned by BIOS.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.
• Serial Communication
• Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Controller SUNIX SUN1999
• (16C950 UART Compatible) Baud rate 50bps ~921.6Kbps
• BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2
• No. of Port 16-port Parity even, odd, none, mark, space
• IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
• FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female
• Protection 15KV ESD protection for each signal Human Body Model (HBM)
• 15KV IEC1000-4-2 Air Gap Discharge
• 8KV IEC1000-4-2 Contact Discharge
• Dimension
• PCB Dimension 120 x 110 mm
• Bracket Standard 121 mm
• Bracket Space 1
