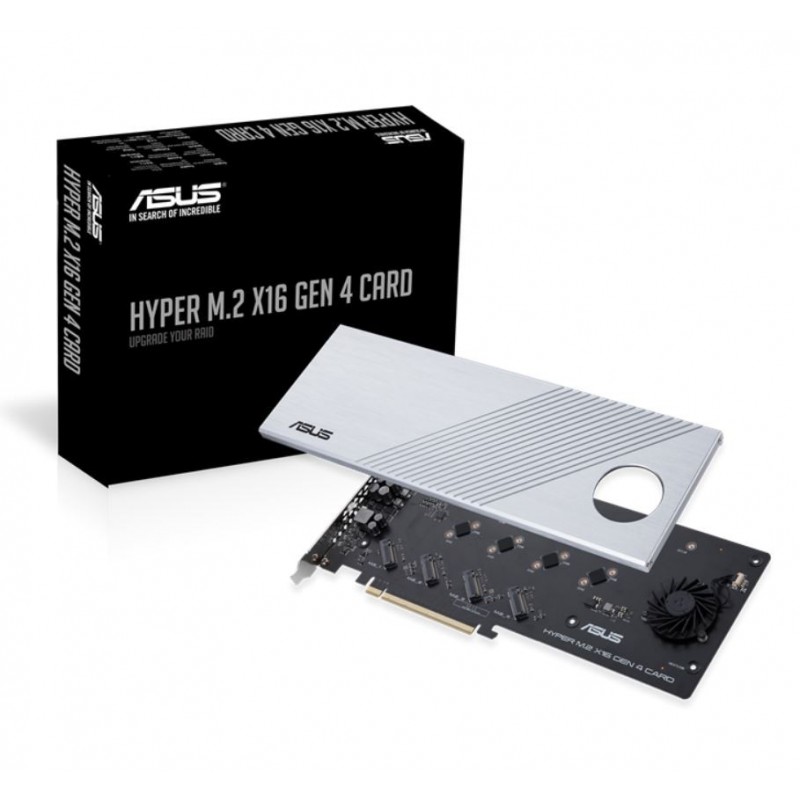

NEW ASUS HYPER M.2 X16 GEN 4 CARD SUPPORTS 4XPCIE3.0 4XM2 TRANSFER RATE 256GBPS.e

Brand New Australia stock ASUS HYPER M.2 X16 GEN 4 CARD SUPPORTS 4XPCIE3.0 4XM2, TRANSFER RATE 256GBPS - Manuf PN: HYPER M.2 X16 GEN 4 CARD

Additional Information

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and IntelR platform RAID-on-CPU functions
• Two-phase power solution with up to 14-watt output supports the latest NVMe drives
• Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
• Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
• Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel platform RAID-on-CPU functions
• Also support other vendors motherboards via PCIe bifurcation in BIOS setting
• PCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps.
• External Connectors
• Up to 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0)*
• * Supports PCIe M.2 storage devices only. Maximum SSDs support will vary, depends on different motherboard's design.
• LED & Button
• 1 x M.2 FAN Power Switch
• 4 x M.2 access LEDs
• Features
• AMD TRX40/X570 Series Motherboard models with PCIe 4.0 support
• Supports PCIe 3.0 bandwidth for other RAID on CPU models.
• Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards.
• Please see the FAQ link for full compatible lists and further information:
• support/FAQ/1037507
• Dimentions
• 27 (L)*12.2(W) *1.5(H)cm

* If there is no enough information here for you to make a purchase decision, we suggest you to visit manufacturer's website for more details using their part number listed above. Alternatively, you can either call or email us to make an enquiry.
